*** USE OPTION (1) TO SELECT VOLTAGE AND THEN OPTION (2) FOR FLOWRATE - PRESSURE ***

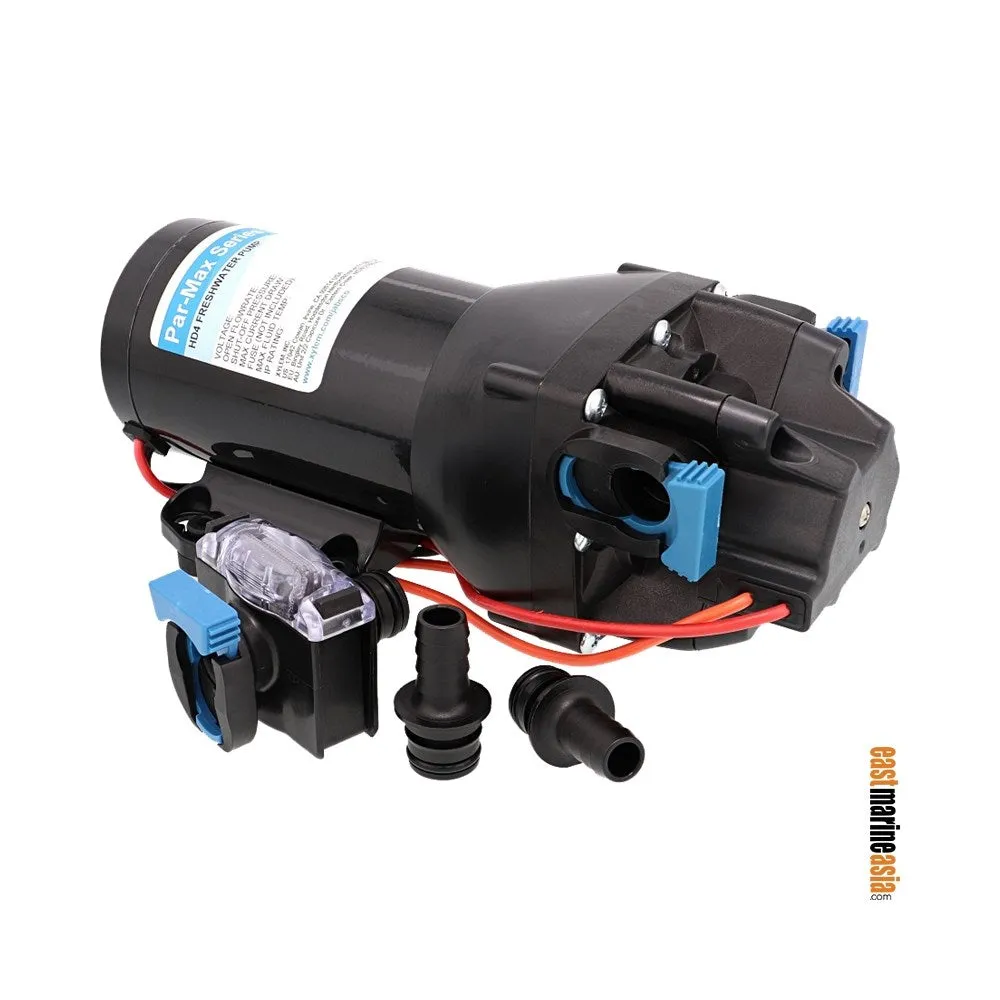

Jabsco PAR-Max HD4 Freshwater Pump
Product # | Q401J-112S-3A | Q401J-115S-3A | Q401J-118S-3A | Q402J-112S-3A | Q402J-115S-3A | Q402J-118S-3A |
Voltage | 12 Vdc | 12 Vdc | 12 Vdc | 24 Vdc | 24Vdc | 24 Vdc |
To replace model #s | 31620-0292 32600-0092 82400-0392 82500-0392 82600-0392 | 31600-0092 31620-0092 82400-0092 | 82400-0092 | 31620-0294 32600-0294 82400-0394 82500-0394 2600-0394 | 31600-0094 31620-0094 32600-0094 82400-0294 82500-0294 | 82400-0094 |
Flowrate | 4 GPM 15.1 LPM | 4 GPM 15.1 LPM | 4 GPM 15.1 LPM | 4 GPM 15.1 LPM | 4 GPM 15.1 LPM | 4 GPM 15.1 LPM |
Pressure Switch Off Setting | 25 psi 1.7 bar | 40 psi 2.8 bar | 60 psi 4.1 bar | 25 psi 1.7 bar | 40 psi 2.8 bar | 60 psi 4.1 bar |
Self Priming | 8 ft 2.4 m | 8 ft 2.4 | 8 ft 2.4 | 8 ft 2.4 | 8 ft 2.4 | 8 ft 2.4 |
Pump Length | 9.4 in 240 mm | 9.4 in 240 mm | 9.4 in 240 mm | 9.4 in 240 mm | 9.4 in 240 mm | 9.4 in 240 mm |
Pump Height | 3.8 in 97 mm | 3.8 in 97 mm | 3.8 in 97 mm | 3.8 in 97 mm | 3.8 in 97 mm | 3.8 in 97 mm |
Pump Width | 4.1 in 104 mm | 4.1 in 104 mm | 4.1 in 104 mm | 4.1 in 104 mm | 4.1 in 104 mm | 4.1 in 104 mm |
Pump Weight | 5.6 lbs 2.5 kg | 5.6 lbs 2.5 kg | 5.6 lbs 2.5 kg | 5.6 lbs 2.5 kg | 5.6 lbs 2.5 kg | 5.6 lbs 2.5 kg |
